Reference Video: https://youtu.be/PKVwRe3mQNg
1. Silent Fan Kit
Used to cool the printed model, allowing it to solidify in time and maintain shape.
2. When to Replace
The fan is not spinning, or it makes irreparable noise.
3. Required Tools
H1.5 hex wrench
H2.0 hex wrench
New silent fan kit
Precautions
⚠️ Please ensure the machine is powered off before replacement. Also confirm that no filament is being used during the operation.
4. Replacement Steps
(1) Remove the 6 screws securing the top cover and take off the cover.

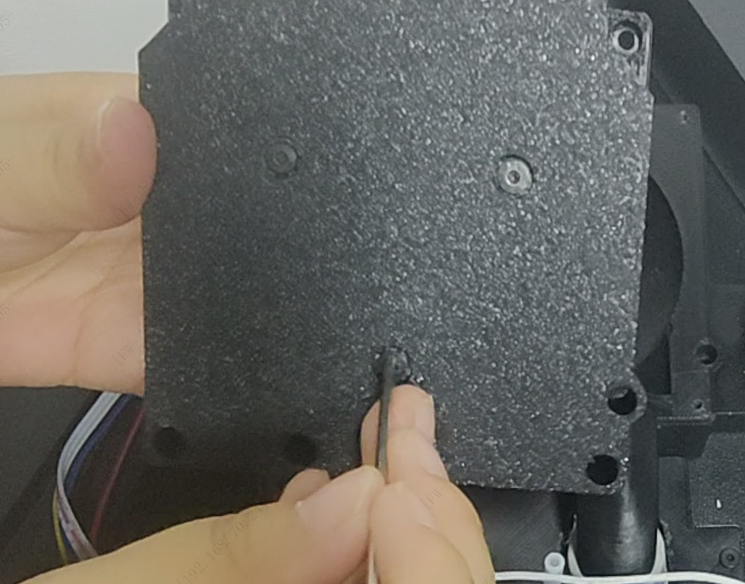

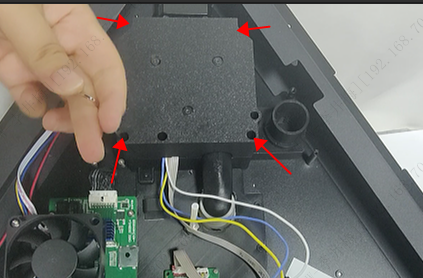

(2) Remove the screws securing the muffler box and open it.
(3) Remove the screws securing the blower and take out the blower.

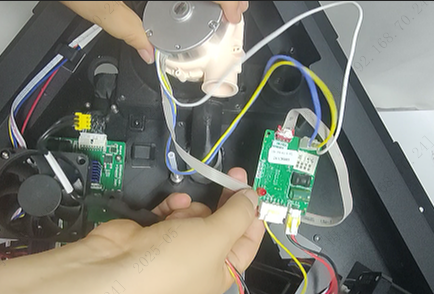

(4) Remove the screws securing the blower driver module.
(5) Disconnect the silent fan connector from the mainboard and remove the old silent fan.
(6) Install the new silent fan and reconnect the terminal.
(7) Reinstall and secure the blower and driver module.
(8) Close the muffler box and tighten the screws.
(9) Reinstall the top cover and secure it with screws.
