1. Effector Ribbon Cable
Connects the mainboard to the effector adapter board. It transmits control signals and power, ensuring the proper operation of the effector components, including the hotend, fans, sensors, ADXL345, etc.
2. When to Replace
3. Required Tools
4. Replacement Steps
(1) Remove the upper cover panel

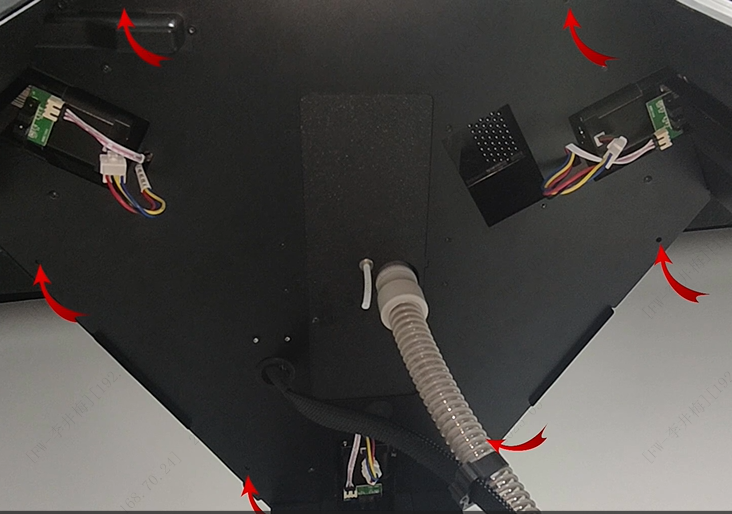

Use the H1.5 hex wrench to remove the top cover of the machine to expose the internal components.

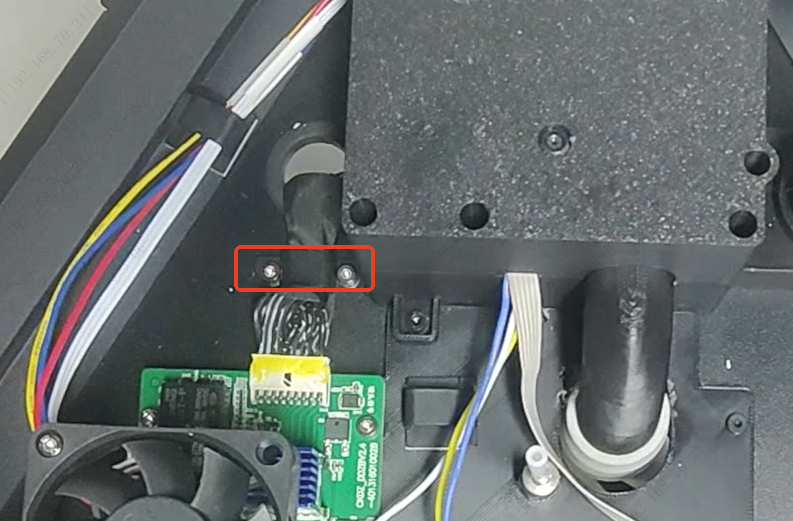

(2) Unscrew the cable retention screws
(3) Disconnect the ribbon cable
Gently pull the ribbon cable out from the mainboard side by holding the connector. Do not pull the cable directly.
(4) Remove the ribbon cable clamp screws
Use the H2.5 hex wrench to remove the screws securing the cable clamp.
(5) Remove the old ribbon cable and detach the cable clamp
(6) Install the new ribbon cable
Install the new cable following the original routing. Re-secure the cable clamps to ensure tidy, safe, and tension-free cable routing.
