¶ T Series Filament Insertion Port Optimization Upgrade
This upgrade improves the cable fixation structure near the filament insertion port on the effector. By optimizing the cable mounting base, it effectively prevents the ribbon cable from loosening or rubbing against surrounding components during high-speed printing, reducing wear and enhancing long-term machine stability.
¶ Required Tools and Components
Please prepare the following items for this upgrade:
- Hex wrenches (H2.0 and H2.5)

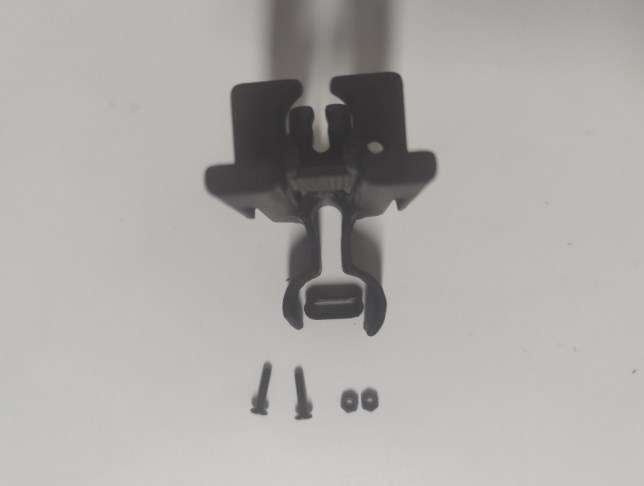

- Integrated cable fixing base (3D printed part)
- M3×14 hex socket cap screws ×2
- M3 304 stainless steel hex nuts ×2
¶ Download the Printed Part
Please download and print the required integrated cable fixing base:
👉Click to download the G-code file

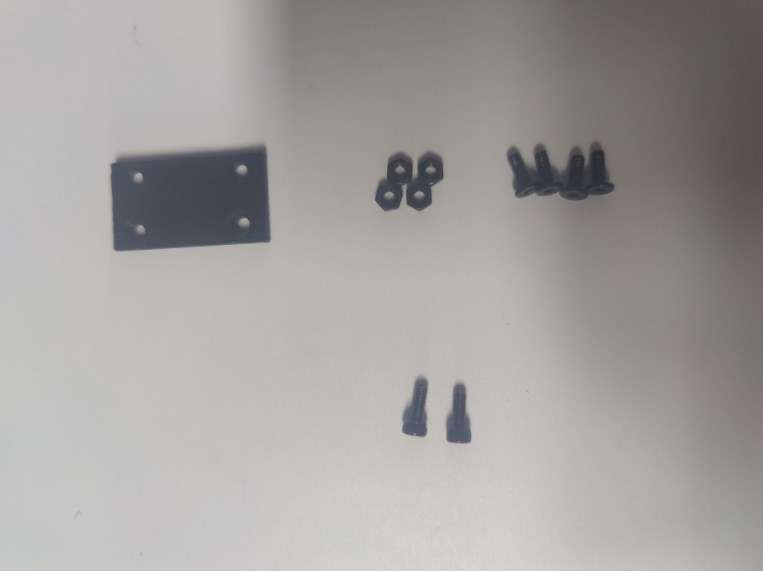

¶ If your machine is a T1 or T1 Pro, you will also need:
· M3×8 Black Carbon Steel Socket Head Cap Screws (2 pcs)
· M3×8 Black Carbon Steel Flat Head Socket Screws (4 pcs)
· M3 Self-locking Nuts (4 pcs)
· Printed Part Cable Fixing Base Cover
👉Click to download the STL file
Reference Video: https://youtu.be/QR5NSR_84dY
The video demonstration is shown using the T1 Max machine.
