¶ 1. Reference Video:
https://youtu.be/QGMHzllHXTg
Please refer to the video for visual instructions.
¶ 2. Overview
The FLSUN T1 Pro is already equipped with a built-in noise reduction kit that provides noticeable sound reduction.This guide introduces an enhanced physical noise reduction solution targeting fan and airflow noise, helping you achieve a quieter printing environment.

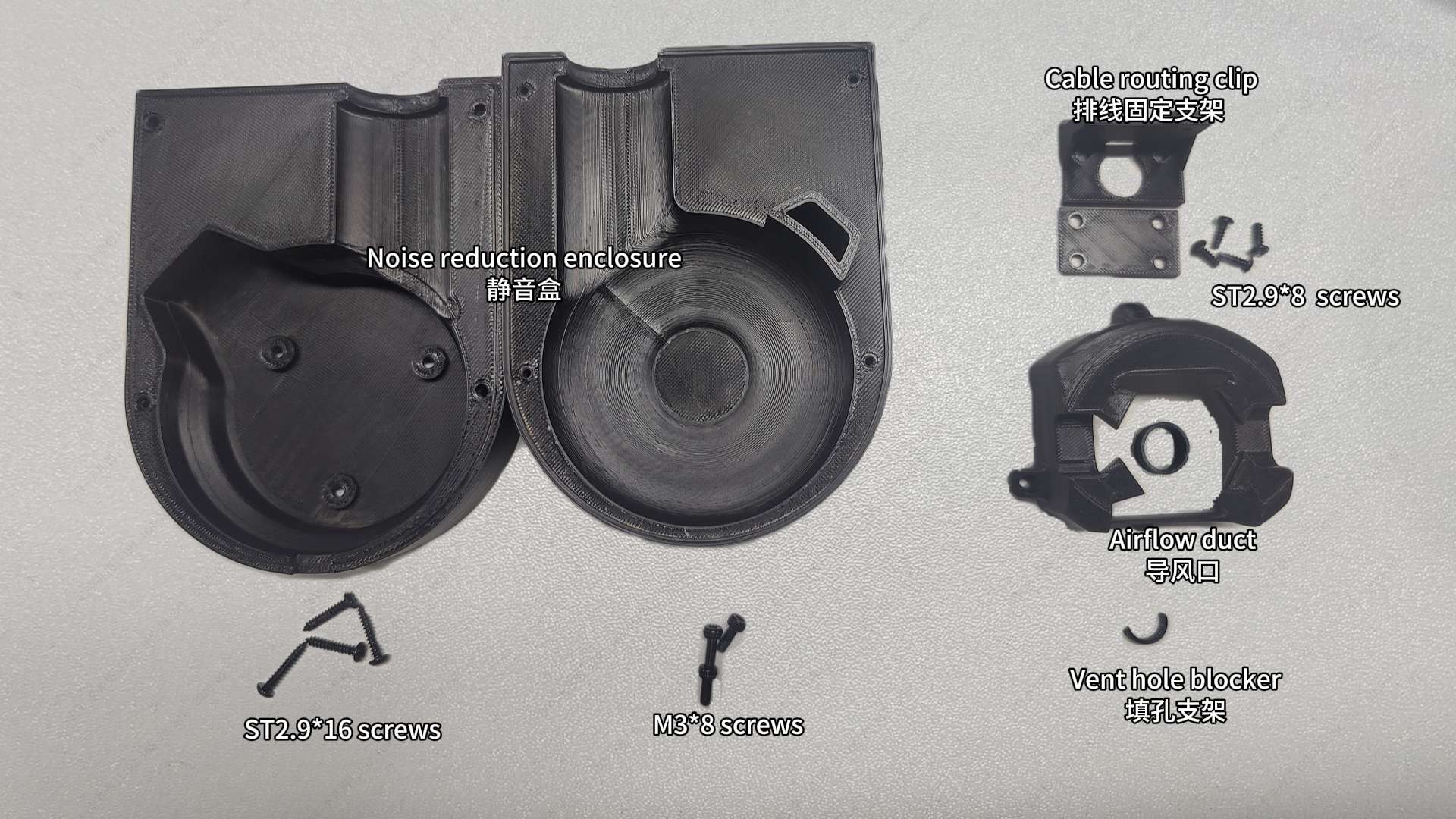

¶ 3. Required Components
Download links for printable parts:
¶ 4. Modification Steps

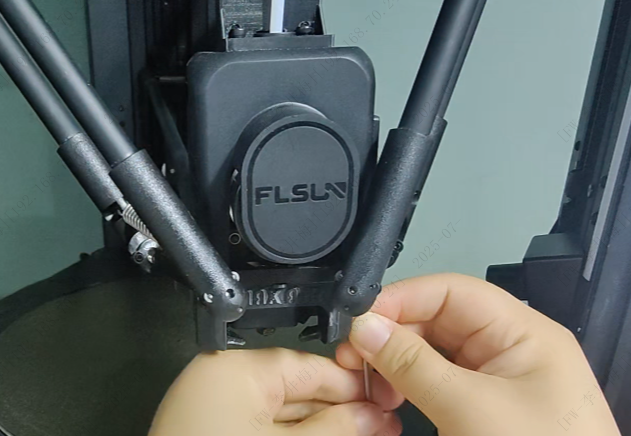

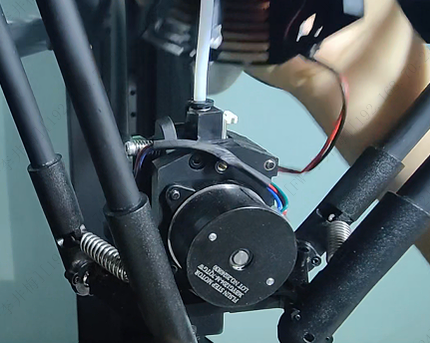

- Remove the effector housing and the airflow duct.
- Remove the original cable routing clip.

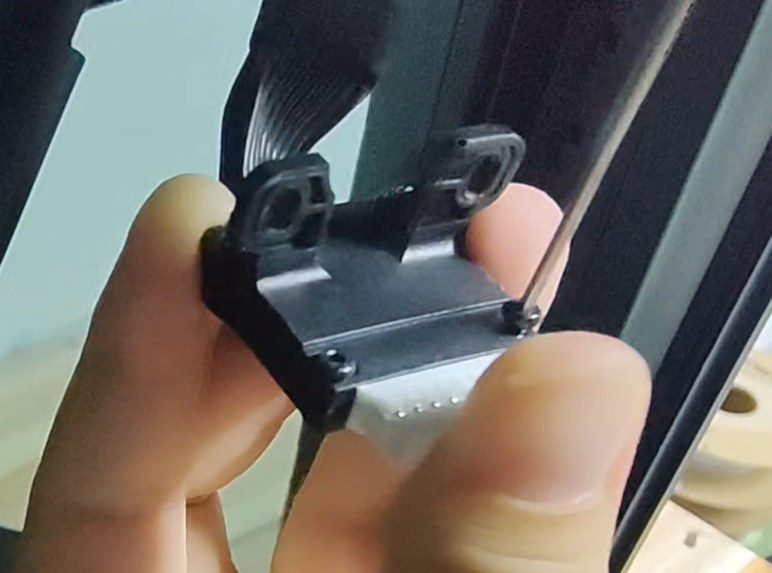

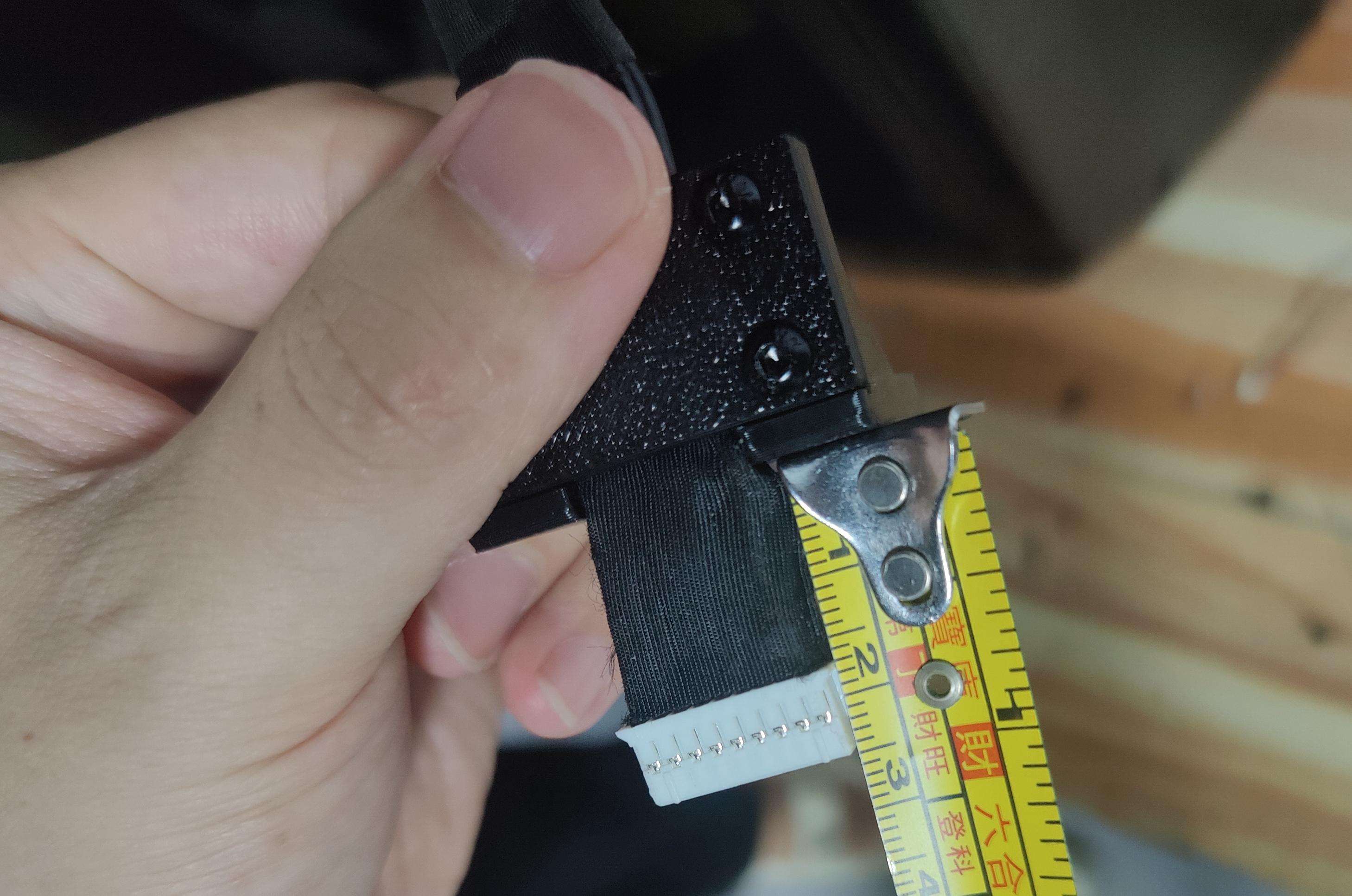

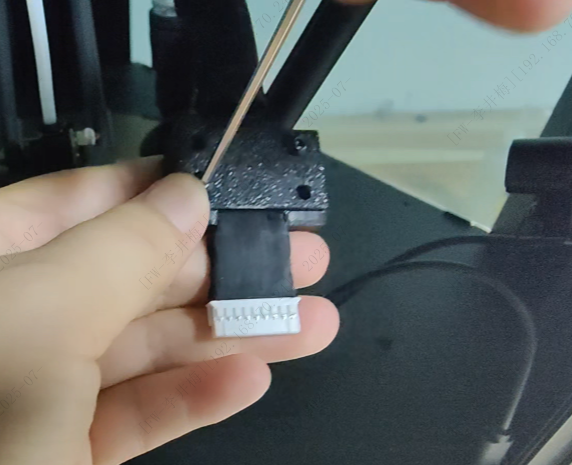

- Install the new cable routing clip. When installing, leave approximately 2 cm of slack in the ribbon cable.

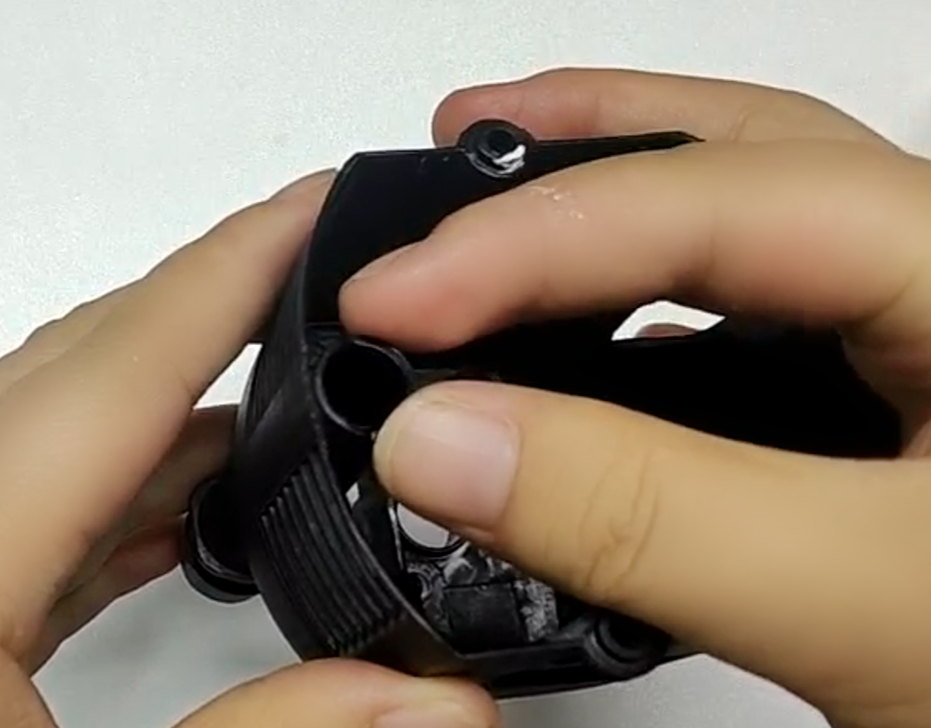

- Install the vent hole blocker onto the effector shell. It is recommended to use a sealing adhesive such as 704 silicone rubber.

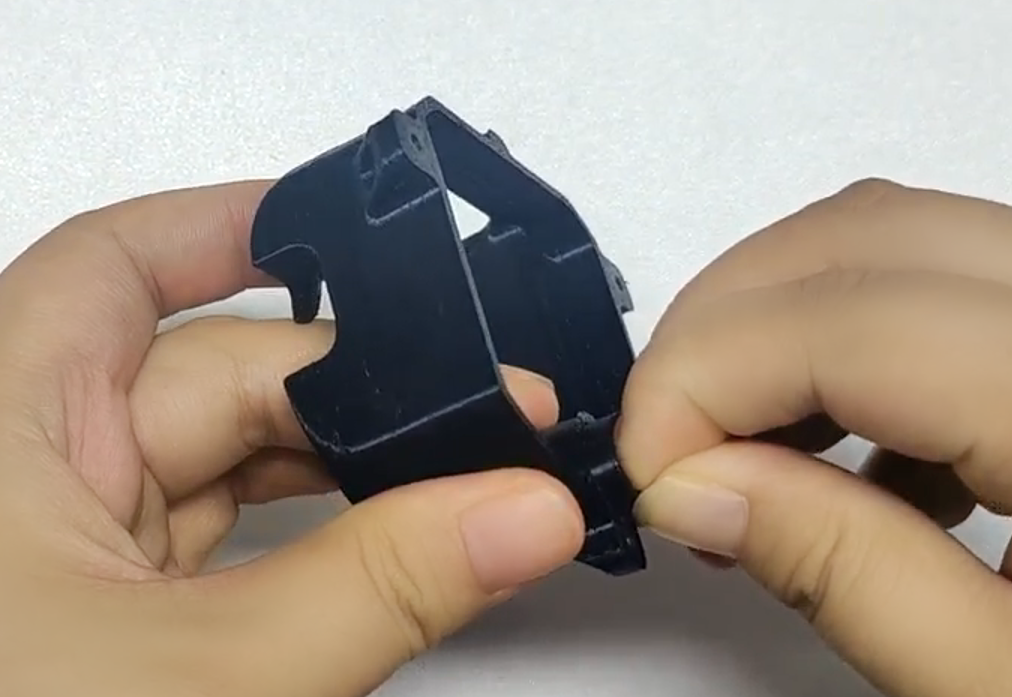

- Attach the small duct piece to the main airflow duct

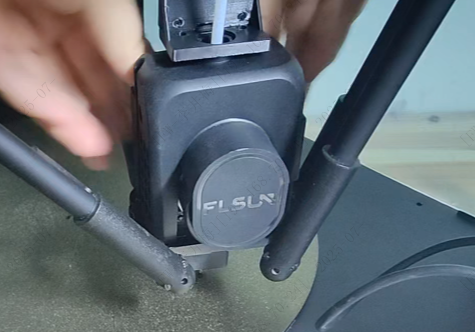

- Install the effector housing and the new airflow duct.

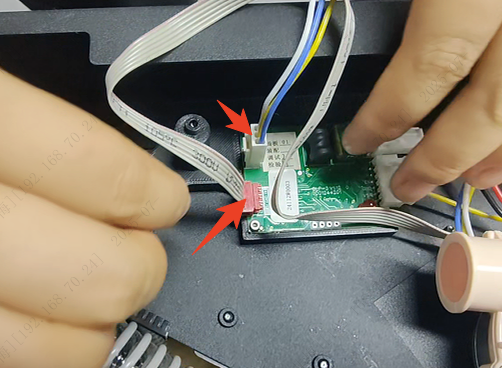

- Connect the ribbon cable, ensuring it is seated properly before securing it with the clip.

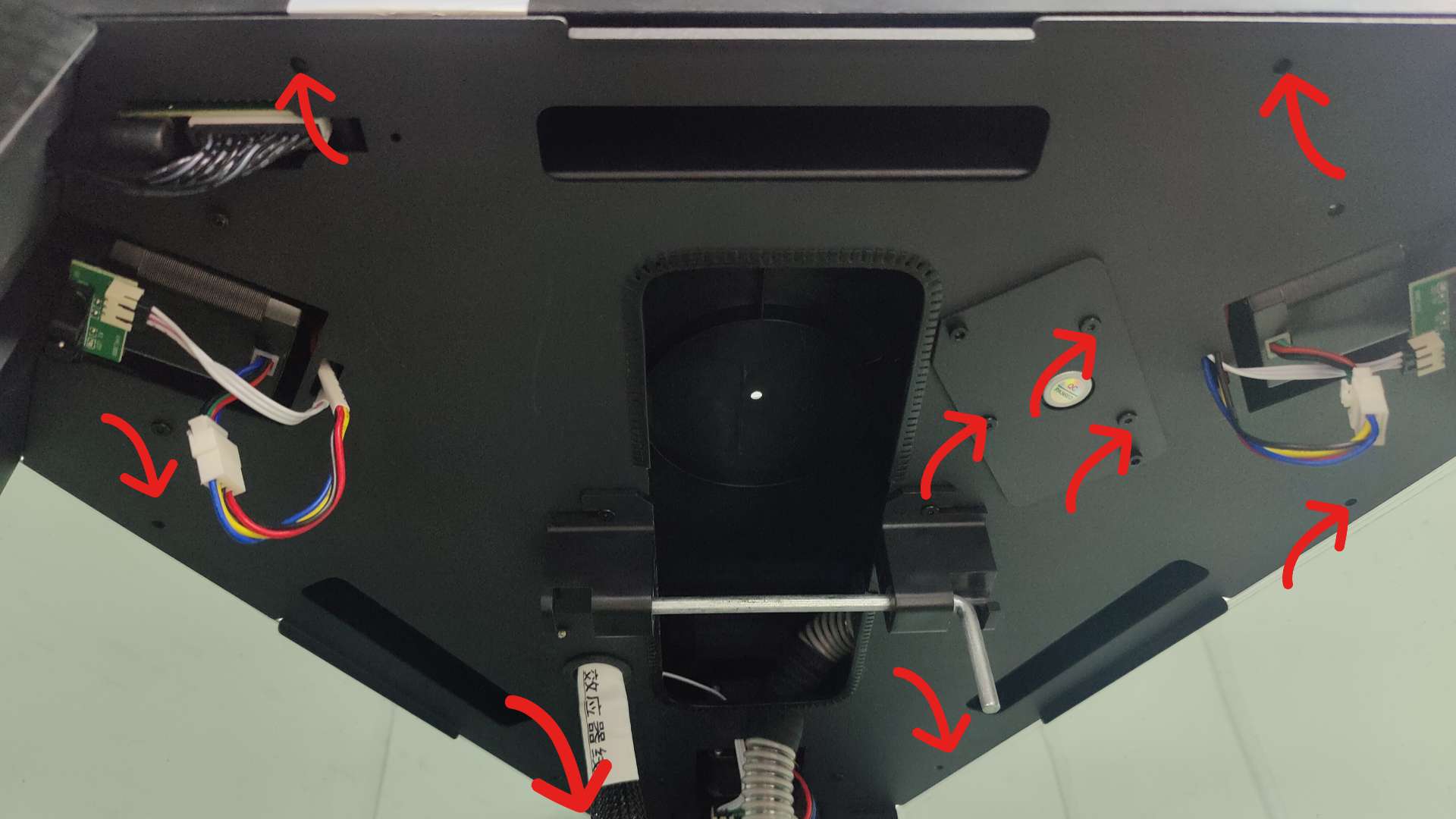

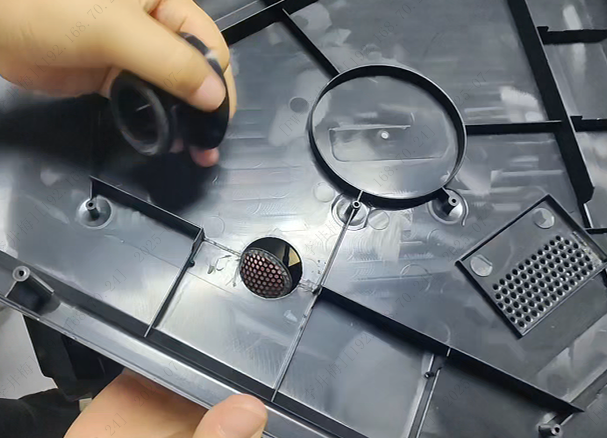

- Remove the screws securing the top cover and the blower.
- Clean the air inlet to ensure it is free of debris.

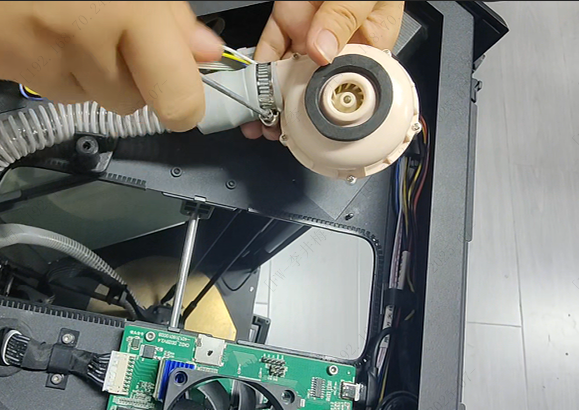

- Remove the blower.

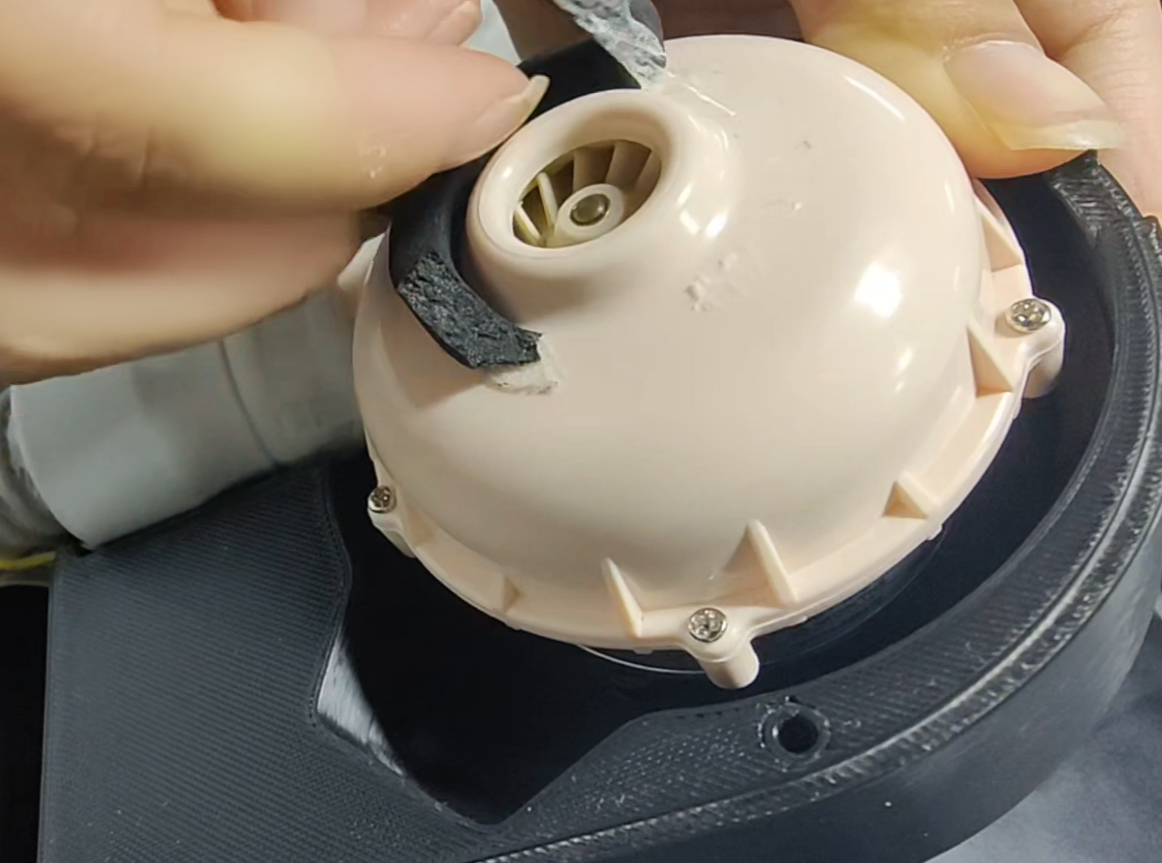

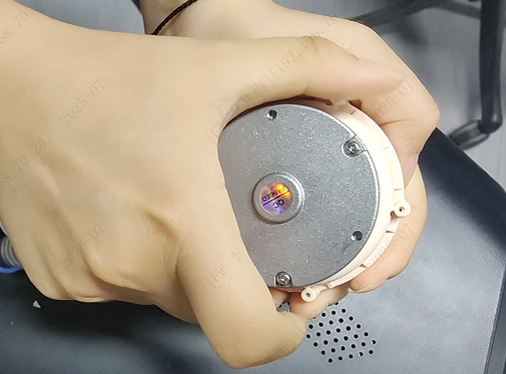

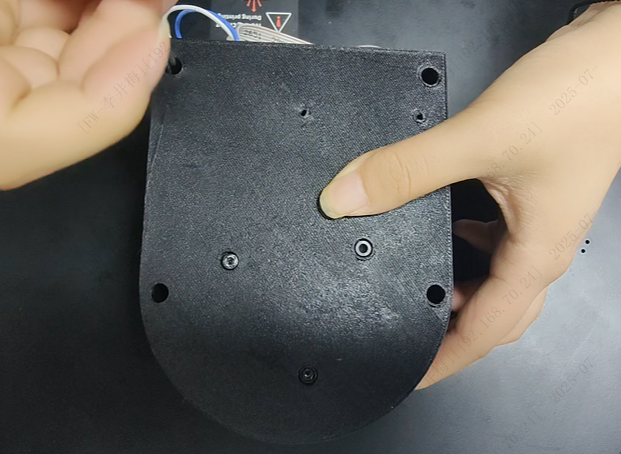

- Install the blower into the noise reduction enclosure. If the screw holes do not align, slightly rotate the blower base to adjust.

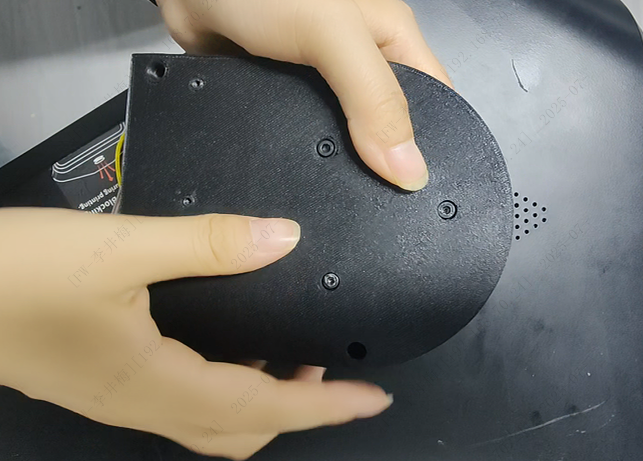

- Align and assemble the two halves of the noise reduction enclosure.

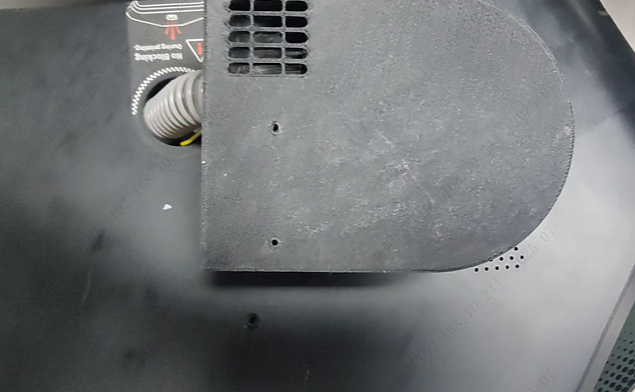

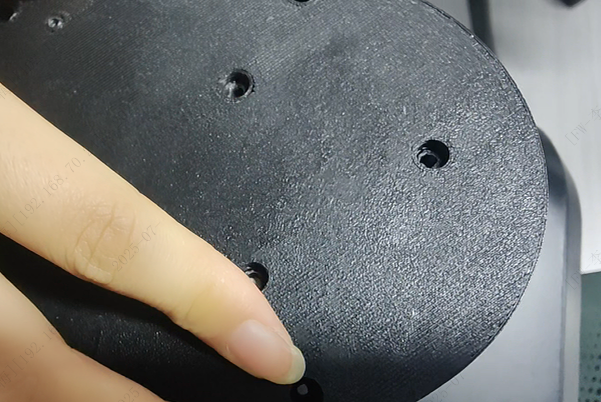

- Place the assembled noise reduction enclosure onto the top cover. It can be temporarily fixed using removable fasteners or adhesive. Permanent fixing is not recommended to avoid impacting future maintenance.
