¶ Motor Drive
The SR uses four 2209 drives with a default current of 1.5A for the XYZ axis motors and 0.95A for the extruder motors.
¶ When to replace
The after-sales service team analyzes and determines that it is a drive failure
¶ Tools and materials required
H2.5 Allen wrench
New 2209 drive
¶ Safety tips and precautions
Make sure the machine is powered off before starting any disassembly or assembly.
Be aware of static electricity when unplugging and plugging in the driver, static electricity may cause damage to the driver.

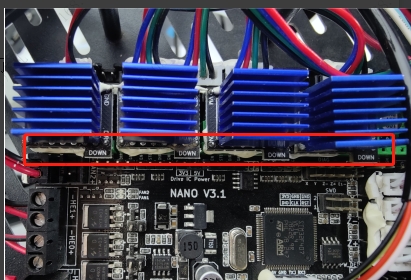

Pay attention to the direction of the drive when installing the drive, installing the drive in the opposite direction may result in damage to the drive.
